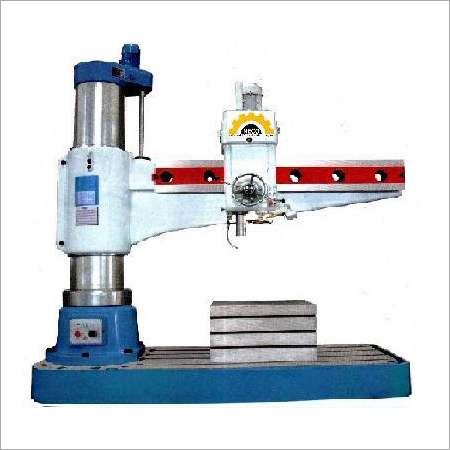

Fully Hydraulic Locking and Gear Changing Radial Drill Machine

Fully Hydraulic Locking and Gear Changing Radial Drill Machine
Fully Hydraulic Locking and Gear Changing Radial Drill Machine
Product Code : NECO 80X2500
Product Description

With our sheer motto to provide our clients with best in class products in a stipulated time frame,we have become a reliable manufacturer, exporter, and importer of a wide gamut of Fully Hydraulic Locking and Gear Changing Radial Drill Machine. Available in varied specifications and dimensions, these machines are manufactured keeping in mind all the set quality norms of the industry. Offered at industry leading price, our range of Fully Hydraulic Locking and Gear Changing Radial Drill Machine is best known for features like corrosion resistance , finely finished , sturdiness , and many more.

Features

  • Robust structure
  • Longer functional life
  • Affordable range
  • Compact size

Specification :

Max. Diameter of hole drilled

80mm

Distance from center line of main spindle to generated of pillar

Max. 2500Mm
Min. 500mm

Movable horizontal distance of head stock

2000 mm

Distance from main spindle end face to working face of bed

Max. 2000 mm

Diameter of column

550 mm

Arm lifting / loving distance

1000 mm

Arm lifting / loving speed

0.017m/ sec

Arm's rotatable angle

+ 180

Main spindle's tapered hols morse

6

Main spindle speed range

0.04 - 3.2 mm/r

Number of main spindle feed rates

16

Main spindle travel

450mm

Drilling depth per each rev. On index plate

150mm

Max allowable tourque of main spindle

1568N.m

Max Allowable resistance to main spindle feeding

35000N

Power of main motor

7.5 KW

Power of am lifting motor

3KW

Power of hydraulic hold-down motor

0.75KW

Power of motor of cooling pump

0.09KW

Approx weight of the machine

11000 Kg

Overall size (L x W x H)

3730x1400x3828 mm
